mapSpain

rOS-badge CRAN-status CRAN-results Downloads r-universe R-CMD-check codecov Project-Status:Active status

mapSpain is a package that provides spatial sf objects of the administrative boundaries of Spain, including CCAA, provinces and municipalities.

mapSpain also provides a leaflet plugin to be used with the leaflet package, that loads several basemaps of public institutions of Spain, and the ability of downloading and processing static tiles.

Full site with examples and vignettes on https://ropenspain.github.io/mapSpain/

Installation

Install mapSpain from CRAN:

install.packages("mapSpain", dependencies = TRUE)

You can install the developing version of mapSpain using the r-universe:

# Install mapSpain in R:
install.packages("mapSpain",
  repos = c(
    "https://ropenspain.r-universe.dev",
    "https://cloud.r-project.org"
  ),
  dependencies = TRUE
)

Alternatively, you can install the developing version of mapSpain with:

library(remotes)
install_github("rOpenSpain/mapSpain", dependencies = TRUE)

Usage

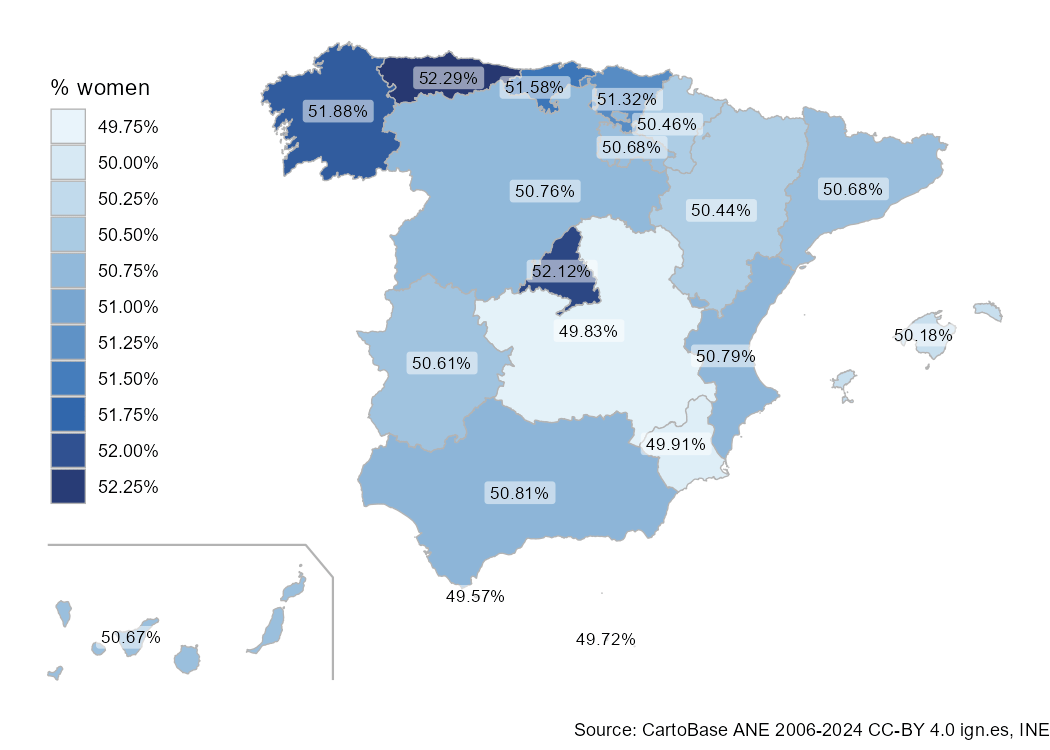

This script highlights some features of mapSpain :

library(mapSpain)
library(sf)
census <- mapSpain::pobmun19

# Extract CCAA from base dataset

codelist <- mapSpain::esp_codelist

census <-
  unique(merge(census, codelist[, c("cpro", "codauto")], all.x = TRUE))

# Summarize by CCAA
census_ccaa <-
  aggregate(cbind(pob19, men, women) ~ codauto, data = census, sum)

census_ccaa$porc_women <- census_ccaa$women / census_ccaa$pob19
census_ccaa$porc_women_lab <-
  paste0(round(100 * census_ccaa$porc_women, 2), "%")

# Merge into spatial data

CCAA_sf <- esp_get_ccaa()
CCAA_sf <- merge(CCAA_sf, census_ccaa)
Can <- esp_get_can_box()


# Plot with ggplot
library(ggplot2)


ggplot(CCAA_sf) +
  geom_sf(aes(fill = porc_women),
    color = "grey70",
    linewidth = .3
  ) +
  geom_sf(data = Can, color = "grey70") +
  geom_sf_label(aes(label = porc_women_lab),
    fill = "white", alpha = 0.5,
    size = 3,
    label.size = 0
  ) +
  scale_fill_gradientn(
    colors = hcl.colors(10, "Blues", rev = TRUE),
    n.breaks = 10,
    labels = function(x) {
      sprintf("%1.1f%%", 100 * x)
    },
    guide = guide_legend(title = "Porc. women")
  ) +
  theme_void() +
  theme(legend.position = c(0.1, 0.6))

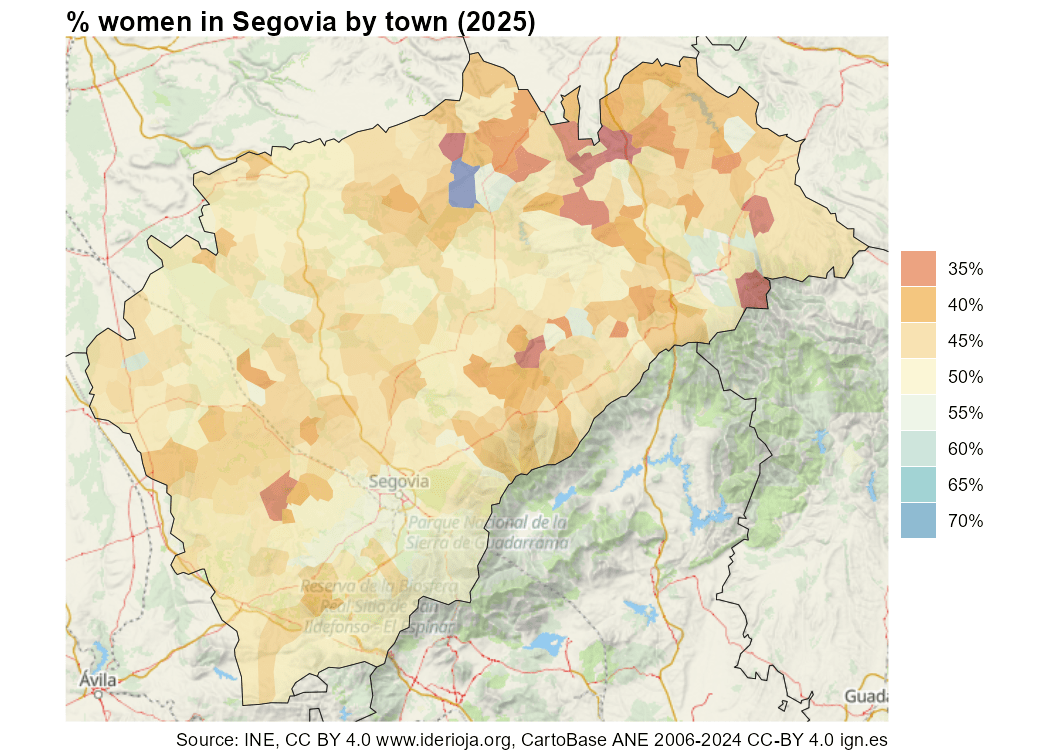

You can combine sf objects with static tiles

# Get census
census <- mapSpain::pobmun19
census$porc_women <- census$women / census$pob19

# Get shapes
shape <- esp_get_munic_siane(region = "Segovia", epsg = 3857)
provs <- esp_get_prov_siane(epsg = 3857)

shape_pop <- merge(shape,
  census,
  by = c("cpro", "cmun"),
  all.x = TRUE
)


tile <-
  esp_getTiles(shape_pop,
    type = "IGNBase.Todo",
    zoommin = 1
  )

# Plot

library(ggplot2)
library(tidyterra)

lims <- as.vector(terra::ext(tile))

ggplot(remove_missing(shape_pop, na.rm = TRUE)) +
  geom_spatraster_rgb(data = tile, maxcell = 10e6) +
  geom_sf(aes(fill = porc_women), color = NA) +
  geom_sf(data = provs, fill = NA) +
  scale_fill_gradientn(
    colours = hcl.colors(10, "RdYlBu", alpha = .5),
    n.breaks = 8,
    labels = function(x) {
      sprintf("%1.0f%%", 100 * x)
    },
    guide = guide_legend(title = "", )
  ) +
  coord_sf(
    xlim = lims[c(1, 2)],
    ylim = lims[c(3, 4)],
    expand = FALSE
  ) +
  labs(
    title = "Share of women in Segovia by town (2019)",
    caption = "Source: INE"
  ) +
  theme_void() +
  theme(
    title = element_text(face = "bold")
  )

mapSpain and giscoR

If you need to plot Spain along with another countries, consider using giscoR package, that is installed as a dependency when you installed mapSpain. A basic example:

library(giscoR)

# Set the same resolution for a perfect fit

res <- "20"

all_countries <- gisco_get_countries(
  resolution = res
) |>
  st_transform(3035)

eu_countries <- gisco_get_countries(
  resolution = res, region = "EU"
) |>
  st_transform(3035)

ccaa <- esp_get_ccaa(
  moveCAN = FALSE, resolution = res
) |>
  st_transform(3035)

library(ggplot2)

ggplot(all_countries) +
  geom_sf(fill = "#DFDFDF", color = "#656565") +
  geom_sf(data = eu_countries, fill = "#FDFBEA", color = "#656565") +
  geom_sf(data = ccaa, fill = "#C12838", color = "grey80", linewidth = .1) +
  # Center in Europe: EPSG 3035
  coord_sf(
    xlim = c(2377294, 7453440),
    ylim = c(1313597, 5628510)
  ) +
  theme(
    panel.background = element_blank(),
    panel.grid = element_line(
      colour = "#DFDFDF",
      linetype = "dotted"
    )
  )

A note on caching

Some data sets and tiles may have a size larger than 50MB. You can use mapSpain to create your own local repository at a given local directory passing the following option:

esp_set_cache_dir("./path/to/location")

When this option is set, mapSpain would look for the cached file and it will load it, speeding up the process.

Plotting sf objects

Some packages recommended for visualization are:

Citation

Hernangómez D (2024). mapSpain: Administrative Boundaries of Spain. doi:10.5281/zenodo.5366622, https://ropenspain.github.io/mapSpain/.

A BibTeX entry for LaTeX users is:

@Manual{R-mapspain,
  title = {{mapSpain}: Administrative Boundaries of Spain},
  year = {2024},
  version = {0.9.0},
  author = {Diego Hernangómez},
  doi = {10.5281/zenodo.5366622},
  url = {https://ropenspain.github.io/mapSpain/},
  abstract = {Administrative Boundaries of Spain at several levels (Autonomous Communities, Provinces, Municipalities) based on the GISCO Eurostat database <https://ec.europa.eu/eurostat/web/gisco> and CartoBase SIANE from Instituto Geografico Nacional <https://www.ign.es/>. It also provides a leaflet plugin and the ability of downloading and processing static tiles.},
}

Contribute

Check the GitHub page for source code.

This package uses data from CartoBase SIANE, provided by Instituto Geográfico Nacional:

Atlas Nacional de España (ANE) CC BY 4.0 ign.es

See https://github.com/rOpenSpain/mapSpain/tree/sianedata

This package uses data from GISCO. GISCO (FAQ) is a geospatial open data repository including several data sets at several resolution levels.

From GISCO > Geodata > Reference data > Administrative Units / Statistical Units

When data downloaded from this page is used in any printed or electronic publication, in addition to any other provisions applicable to the whole Eurostat website, data source will have to be acknowledged in the legend of the map and in the introductory page of the publication with the following copyright notice:

EN: © EuroGeographics for the administrative boundaries

FR: © EuroGeographics pour les limites administratives

DE: © EuroGeographics bezüglich der Verwaltungsgrenzen

For publications in languages other than English, French or German, the translation of the copyright notice in the language of the publication shall be used.

If you intend to use the data commercially, please contact EuroGeographics for information regarding their license agreements.
